ILINOX stainless steel enclosures with hygienic design

  • 14 April 2025

The compact terminal and push-button enclosures from the DEH and PEH series are designed with a hygienic design, making them ideal for environments with strict hygiene requirements. Manufactured from AISI 316L stainless steel with a fine satin finish, these enclosures offer a high degree of protection (IP66/IP69K) and feature a removable, cleanable, and sterilizable blue silicone gasket.

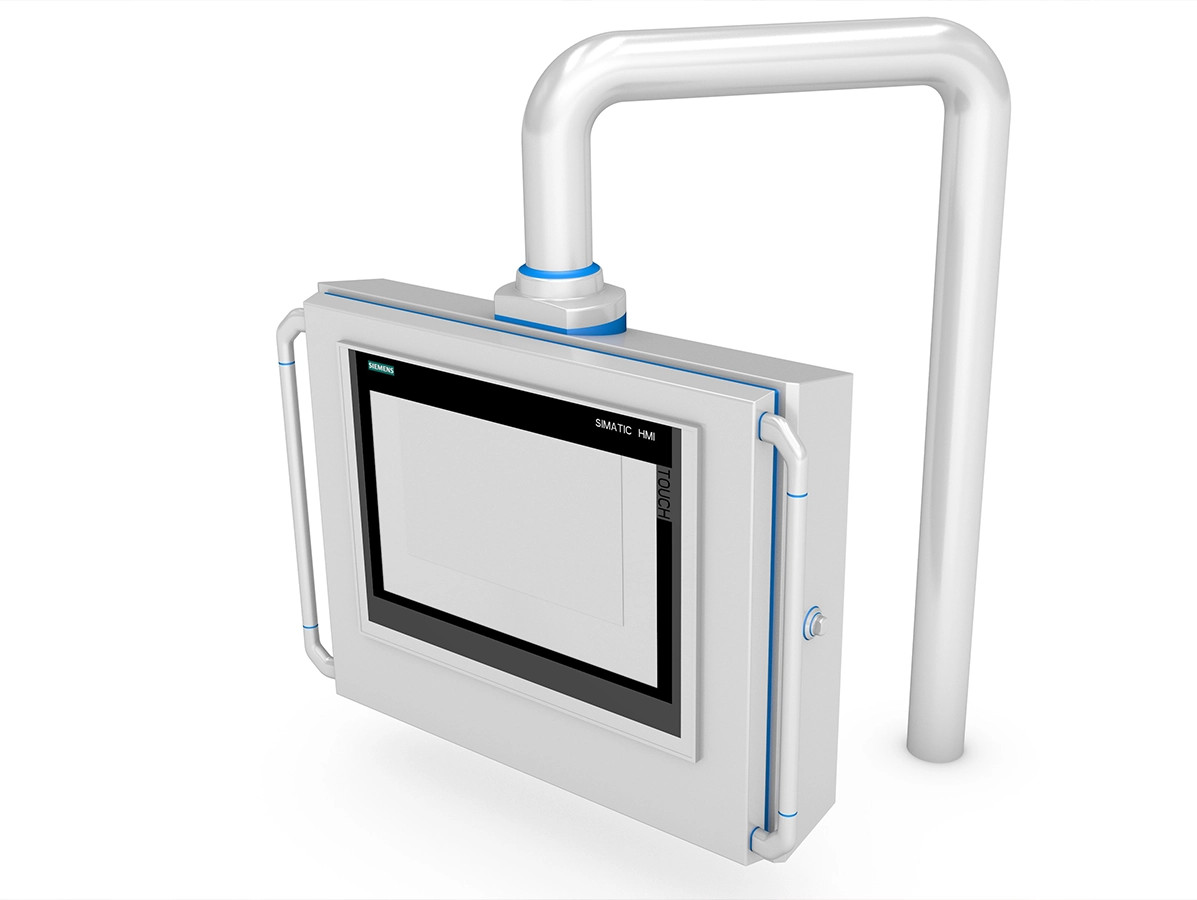

Control enclosures for HMI applications: BKH series with suspension system

The BKH control enclosures are specially developed for Human Machine Interface (HMI) applications. These stainless steel enclosures feature an ergonomic design with smooth, rounded surfaces for easy cleaning and meet the highest hygienic standards. They can be combined with suspension systems and corresponding joints, allowing the operator to adjust the position freely for optimal comfort during use. You can also see the BKH control enclosure live at the demo area at Food Tech 2025!

Hygienic wall-mounted enclosures: QSH series

The QSH series consists of wall-mounted enclosures with a hygienic design, developed specifically for the food industry. The integrated roof is angled at 30°, preventing the accumulation of dirt or liquids. The enclosure includes a removable blue silicone gasket that is easy to clean and sterilise. Robust cast AISI 316 hinges provide extra durability. QSH enclosures are available in various standard sizes, with custom configurations also possible. Feel free to ask about the available options.

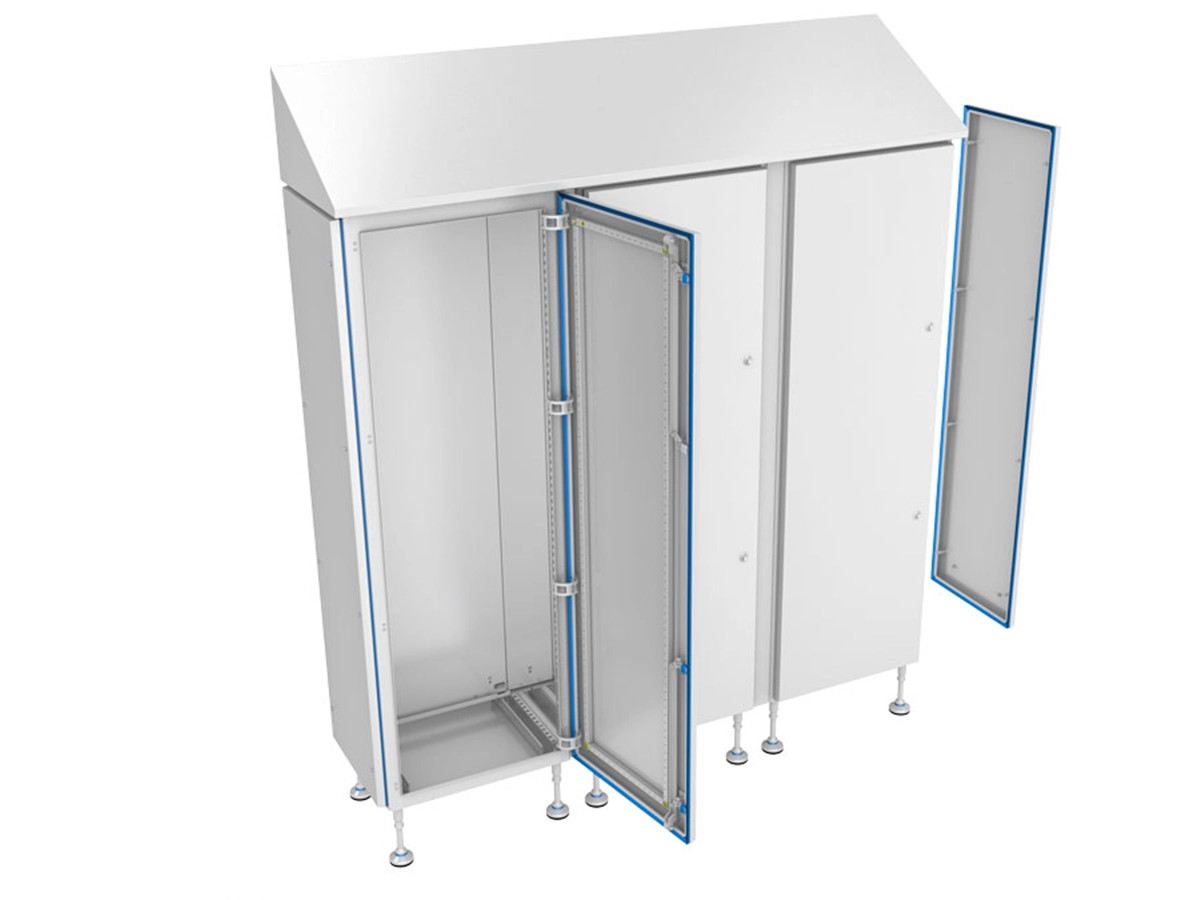

Floor-standing wall enclosures: CXH series

The CXH series offers floor-standing hygienic enclosures with removable side panels, made from AISI 304L or AISI 316L stainless steel with a fine satin finish. The sloped roof, angled at 30°, ensures that dirt and water cannot accumulate. These enclosures also include a removable, cleanable, and sterilizable blue silicone gasket. Available in widths of 400, 600, and 800 mm, the CXH series can easily be connected to one another. The integrated GSPH guide system allows connected mounting plates to slide in from the side as a single unit, simplifying installation.

Custom solutions tailored to your needs

In addition to standard stainless steel enclosures, CC Nederland offers custom solutions fully tailored to your specific requirements. Whether it’s custom dimensions, additional cable entries, or adapted mounting options, we deliver a solution that fits seamlessly into your production environment.

Visit CC Nederland (booth 104) at Food Tech Event 2025 and explore the possibilities.

www.ccned.nl

Food Tech Event 2025 | Hall 3 Booth 104
